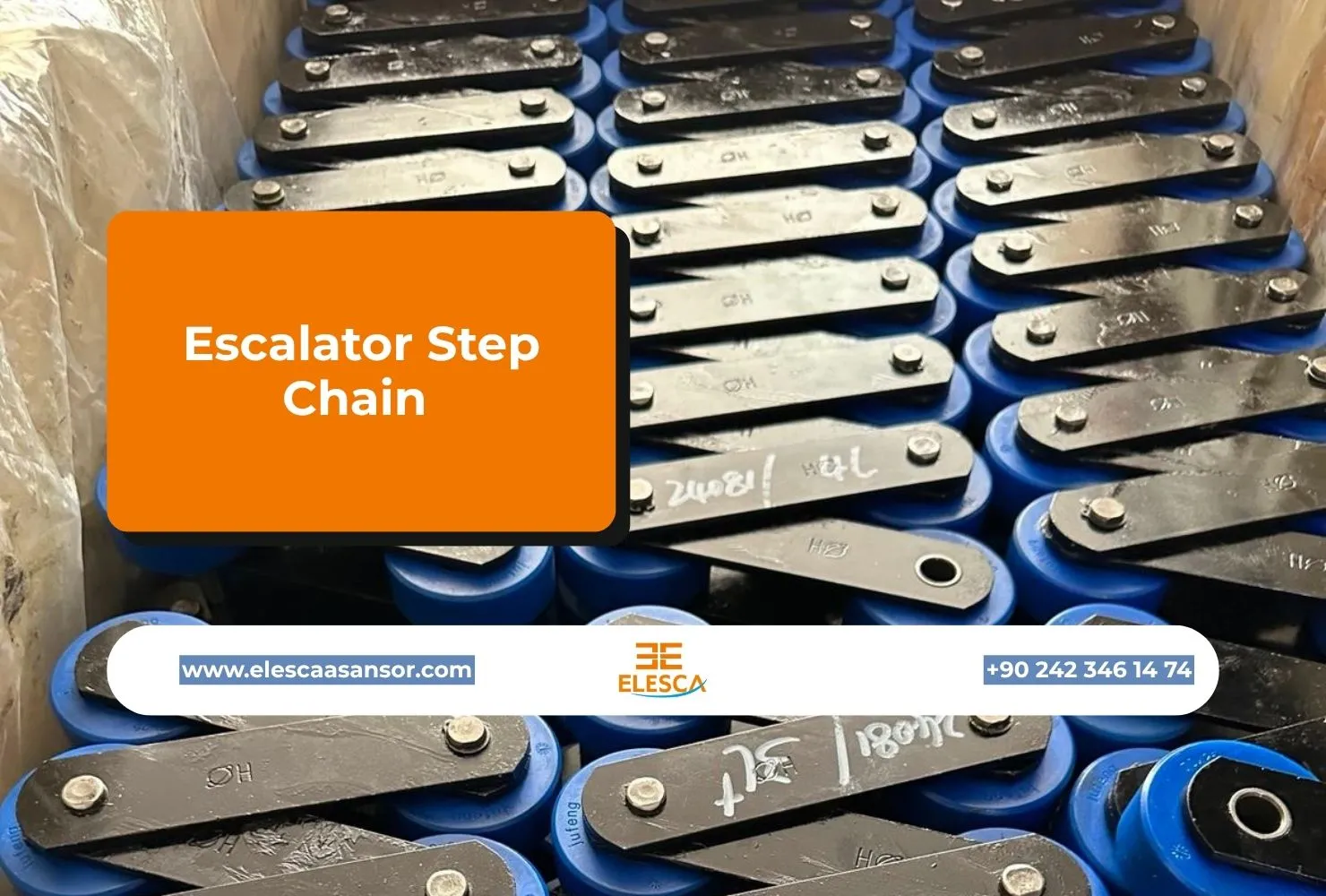

Escalator Step Chain

Escalator Step Chain Complete Guide, Working Principle, Types, Materials, Prices & Maintenance

Escalator step chain systems are the backbone of safe escalator operation. As one of the most critical components in escalator mechanics, the escalator step chain ensures synchronized step movement, balanced load transfer, and uninterrupted passenger flow. In commercial buildings, airports, shopping malls, hotels, metro stations, and public areas, high-quality escalator step chain parts significantly reduce downtime and maintenance costs.

Elesca Elevator & Escalator Systems Company, based in Antalya, supplies premium escalator spare parts—including escalator step chain, escalator handrail, pulley, comb plate, step roller, step skirting, and more—to domestic and international markets.
For inquiries: +90 242 346 14 74

What Is an Escalator Step Chain?

Escalator step chain is the mechanical transmission component that connects all escalator steps together and moves them in a looped cycle. It carries the total weight of steps plus passengers and transfers motion to the steps in perfect synchronization.

Each escalator has two chains running parallel to each other. These chains operate like a bicycle chain but are far more robust, engineered to withstand thousands of daily cycles under varying loads.

Key Purposes of the Step Chain

• Transfers rotational energy from the drive motor to the steps

• Keeps step alignment fixed during movement

• Ensures smooth upward or downward motion

• Maintains passenger safety by preventing step dislocation

• Supports heavy loads during peak usage

Because the escalator step chain carries both dynamic and static loads, choosing the right material and production quality is essential.

How Does an Escalator Step Chain Work?

Escalator step chain works through a combination of mechanical tension, drive sprockets, and synchronized rotational motion.

Step-by-Step Working Principle

1. The drive motor rotates the main shaft.

2. The shaft engages with the chain’s sprockets.

3. The chain begins pulling every step attached to it.

4. Steps maintain constant spacing through chain links.

5. Rollers guide steps along the track.

6. At the top landing, steps flatten out and return underneath.

This continuous loop allows escalators to carry passengers safely and efficiently.

Main Components Connected to the Step Chain

Escalator step chain works in harmony with various mechanical parts:

1. Step Rollers

Help steps glide smoothly along the track.

2. Drive Sprockets

Transmit torque to the chain.

3. Tracks & Guides

Keep steps aligned and stable.

4. Step Axles

Connect each step to the chain.

5. C Return Chain

Ensures synchronized step return movement.

6. Escalator Control Panel

Monitors movement, speed, and emergency stops.

All these components must match the chain specifications to ensure safe operation.

Types of Escalator Step Chains

Escalator step chain models differ according to brand, step width, load capacity, and usage intensity.

1. Standard Step Chain

Designed for commercial buildings and mid-traffic shopping centers.

2. Heavy-Duty Step Chain

Used in metro stations, airports, and high-traffic environments.

3. Stainless Steel Step Chain

Perfect for humid, corrosive, or outdoor conditions.

4. Roller-Integrated Step Chain

Reduces friction and extends service life.

What Materials Are Used in Escalator Step Chains?

Escalator step chain durability heavily depends on material quality.

Most Common Materials

• Alloy steel

• Heat-treated carbon steel

• Nickel-coated steel

• Stainless steel (304 / 316)

Why High-Quality Material Matters

• Better corrosion resistance

• Less friction and lower noise

• Reduced maintenance needs

• Extended escalator lifespan

• Improved passenger safety

Elesca Elevator & Escalator Systems uses industry-approved materials ensuring maximum durability and load performance.

Where Is Escalator Step Chain Used?

Escalator step chain is used in all escalator systems in public and commercial environments:

• Shopping malls

• Airport terminals

• Hotels & resorts

• Subway & railway stations

• Business centers

• Hospitals

• Convention halls

• Government buildings

Any building with escalators requires a reliable escalator step chain system to ensure smooth transportation.

Advantages of High-Quality Escalator Step Chains

Escalator step chain quality directly affects long-term escalator performance.

1. Longer Service Life

Premium chains will last for many years with proper maintenance.

2. Lower Noise & Vibration

Precision manufacturing reduces operational noise.

3. Increased Passenger Safety

Prevents misalignment and step irregularities.

4. Reduced Maintenance Costs

Fewer breakdowns and replacement needs.

5. Better Energy Efficiency

Smooth movement lowers friction and electricity usage.

Elesca’s step chains meet international standards and undergo multiple quality control inspections.

Escalator Step Chain Installation Guide

Escalator step chain installation must be performed by certified technicians.

General Installation Steps

1. Disconnect power and secure the escalator.

2. Remove inspection covers and access panels.

3. Remove old chain and inspect sprockets.

4. Install new chain in alignment with guide rails.

5. Adjust chain tension.

6. Lubricate chain using manufacturer-approved oil.

7. Reinstall panels and perform test runs.

Critical Checks After Installation

• Tension equality between both chains

• No twisting or misalignment

• Sprocket wear control

• Step spacing accuracy

Professional installation ensures safety, durability, and compliance with escalator standards.

Escalator Step Chain Maintenance & Lubrication

Escalator step chain requires periodic maintenance to prevent failures.

Maintenance Intervals

• Monthly inspection: tension, lubrication

• Quarterly inspection: link wear, roller condition

• Annual check: load test, corrosion control

Common Maintenance Tasks

• Cleaning debris and accumulated dirt

• Checking chain stretch (elongation)

• Lubrication with high-temperature chain oil

• Adjusting tension

• Inspecting track alignment

Proper maintenance avoids dangerous chain failures and reduces operational costs.

Common Problems in Escalator Step Chains

Escalator step chain issues typically arise from wear, poor lubrication, or misalignment.

1. Chain Stretching

Caused by continuous load and friction.

2. Noise & Vibration

Indicates worn rollers or insufficient lubrication.

3. Irregular Step Movement

Often due to sprocket wear or chain elongation.

4. Sudden Stops

Triggered by safety sensors detecting chain tension issues.

Elesca provides replacement parts and technical support to resolve these problems quickly.

How to Detect Step Chain Wear

Escalator step chain wear shows specific symptoms:

• Steps appear uneven

• Visible rust or discoloration

• Chain slack increases

• Steps “jump” during movement

• Maintenance alarms triggered

Early detection prevents major damage and costly repairs.

Escalator Step Chain Replacement Costs

Escalator step chain price varies depending on:

• Chain length

• Material type

• Brand compatibility

• Load class

• Environment (indoor/outdoor)

Typical Price Range (Informational)

• Standard chains: Moderate cost

• Heavy-duty / stainless chains: Higher cost

• OEM-specific chains: Premium pricing

Elesca Elevator & Escalator Systems offers competitive pricing for bulk and individual orders. For custom quotes: +90 242 346 14 74

Why Choose Elesca for Escalator Step Chains?

Escalator step chain quality and reliability depend heavily on the supplier.
Elesca provides:

1. High-Quality Certified Products

All parts comply with international standards.

2. Wide Product Range

Including:

• Escalator Handrail

• Step Roller

• Pulley

• Comb Plate

• Step Chain

• C Return Chain

• Handrail Inlet Cover

• Step Skirting

• Escalator Control Panel

3. Domestic & International Supply

Fast, reliable delivery from Antalya to the world.

4. Expert Technical Support

Professional guidance for installation and maintenance.

5. Strong Business Partnerships

We work with leading global brands and experienced solution partners.

How to Choose the Right Escalator Step Chain

Escalator step chain selection should be based on:

1. Brand Compatibility

Ensure perfect match with step axles and sprockets.

2. Material Durability

Select stainless or alloy steel for heavy traffic areas.

3. Load Class

Choose heavy-duty chains for public transportation hubs.

4. Step Width & Model

Different models require customized link sizes.

5. Environmental Conditions

Outdoor environments require corrosion-resistant materials.

Elesca specialists help customers choose the best chain for their escalator system.

Escalator Step Chain Safety Standards

Escalator step chain must comply with:

• EN 115 (European safety standard)

• ISO mechanical quality certifications

• Local elevator & escalator regulations

Safety compliance ensures controlled movement, stable step spacing, and minimized accident risks.

Contact Elesca Elevator & Escalator Systems Company

For Escalator Step Chain, moving walk and escalator parts, or bulk orders:

📍 Antalya, Türkiye
📞 +90 242 346 14 74
🌍 Expert suppliers of premium escalator spare parts for global markets.
